Background

Utility companies around the world suffering by different percentage of loss that can be optimized as a network development budget. Unexpected tamper rategame rikvip, unmanaged electricity bill collection and variety of technical loss will make utilities blind to their revenue and electricity network performance.

Solution Overview

Hexing develops a mature loss management platform ATC&C (Aggregate Technical99WIN, Commercial & Collection) to monitor, locate and analysis a combination of different technical and non-technical losses. It represents overall and individual losses based on 4 different resources (feeder, transformer area, voltage level & zone). In case there is no access to some metering nodes over lack of communication channel in meter, an advanced HHU can collect data and immediately transfer to HES over cellular 3G/4G network.

ATC&C system is representing revenue protection concept over 3 mature individual platforms:

Technical loss based on fixed elements of network equipment and following calculation methods like lines and transformers

Commercial loss based on almost all kind of non-technical loss like tampers99WIN, faulty meters, incorrect readout & etc.

Collection loss based on overdue or any missing of electricity bill.

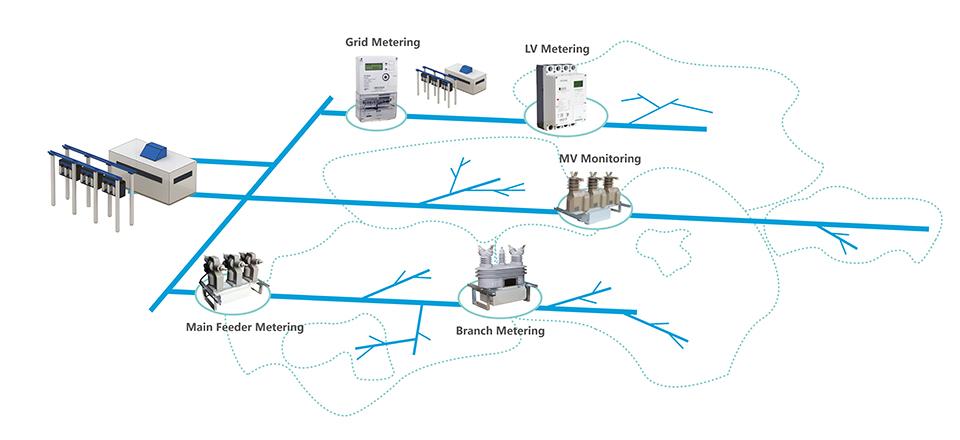

This platform developed for several applications that are common resources of loss in all distribution networks like distribution lines99WIN, distribution transformers, boundary areas, current transformers and end-user AMR/AMI meters.
